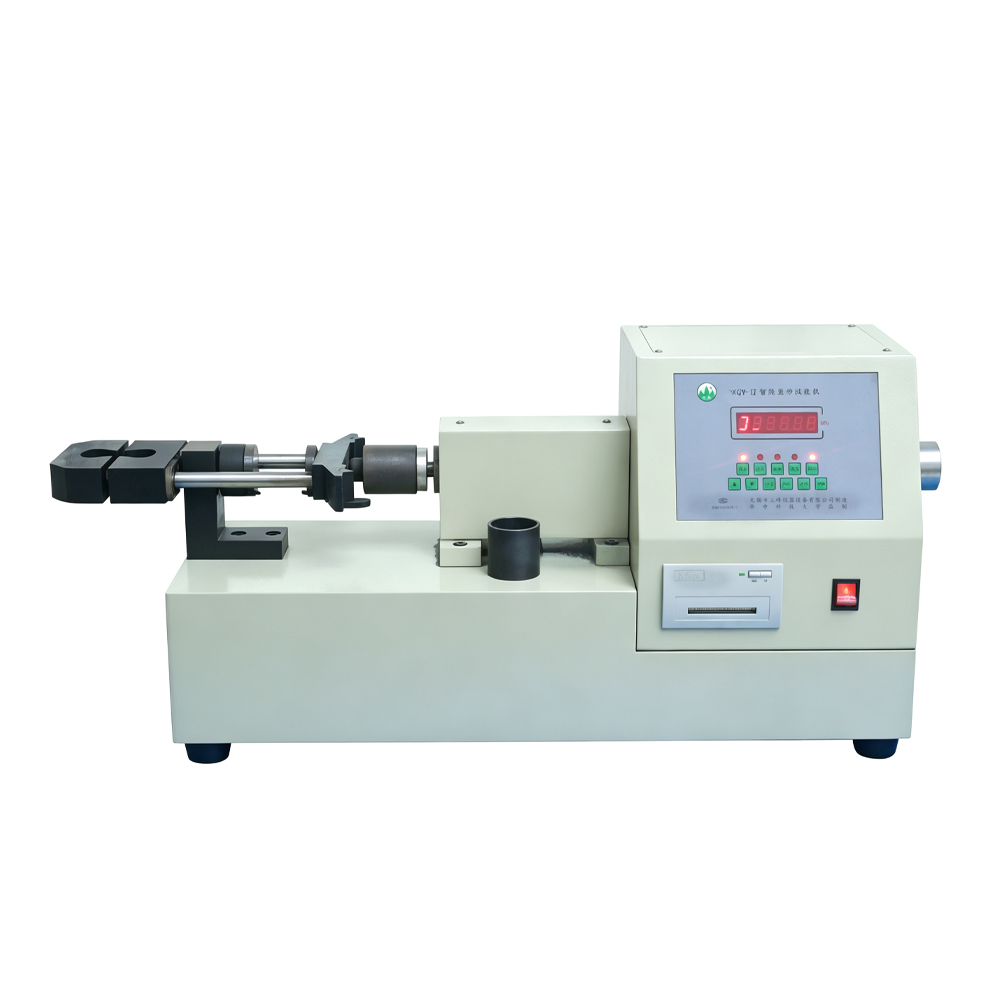

It is used to test the compressive, shear, flexural and tensile strength of molding/core sand at ambient temperature. It adopts automatic mechanical loading, collects data via sensors, directly displays test results on a digital screen and retains the maximum breaking force value. It supports data storage, output and printing, and is equipped with a computer interface (supporting matching software) and a 485-232 conversion interface. Test data can be exported as TXT text files. 1.1 Maximum thrust output: 3000N (peak 10000N) 1.2 Measuring range: 0–3000N; Testing range for molding sand:
Compressive strength: 0–1.5 MPa (max. 5 MPa)
Tensile strength: 0–6 MPa
Shear strength: 0–1.2 MPa
Flexural strength: 0–60 MPa 1.3 Measurement accuracy: ±1.5%
Main Configuration List
| NO. | Name | Model | Unit | Qty | Remarks |
| 1 | Intelligent Strength Testing Machine | - | Set | 1 | - |
| 2 | Fixture | - | Set | 1 | For compressive, shear, flexural and tensile tests |
| 3 | Power Cord | - | Set | 1 | - |
| 4 | Brush | - | Piece | 1 | - |
5 | Mini Printer | 40APCH3 | Unit | 1 | - |
| 6 | Documents including Certificate of Conformity & Operation Manual | - | Set | 1 | - |
Note: The equipment configuration includes but is not limited to the items listed above to guarantee full functional performance
