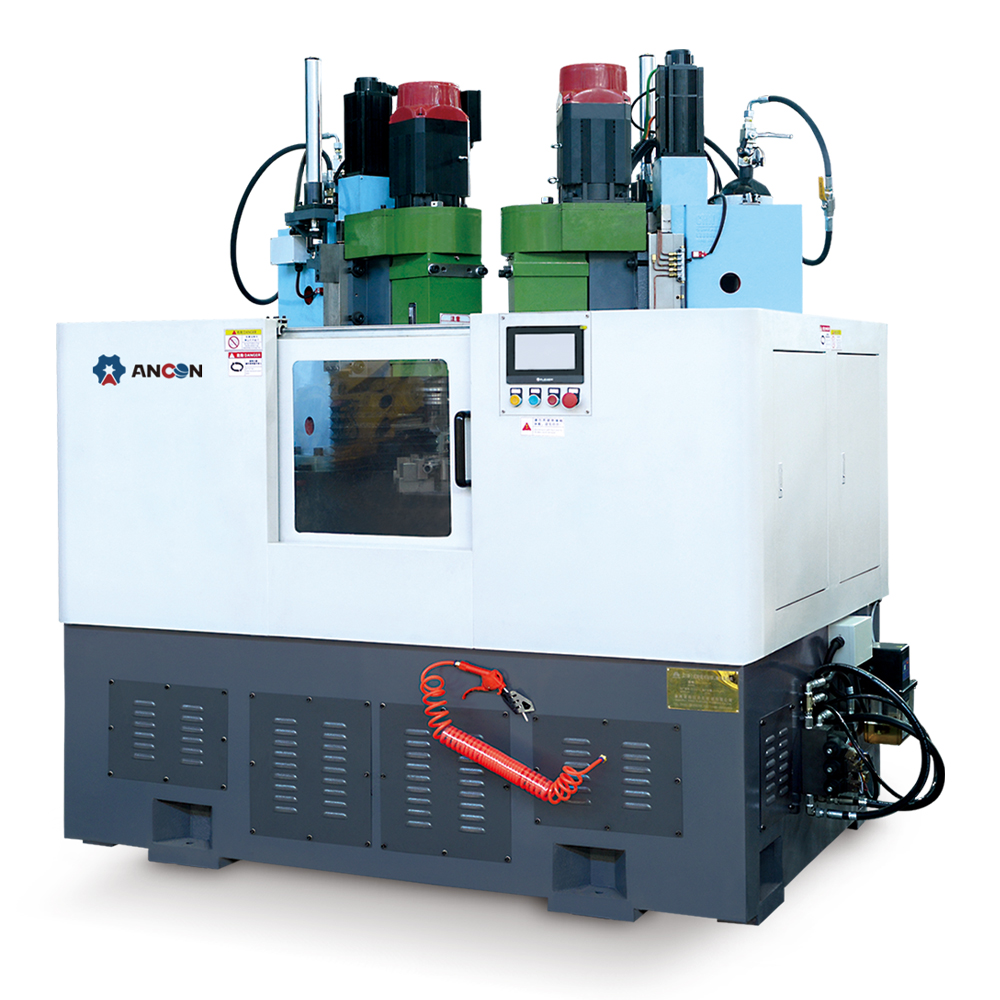

Vertical Double-spindle Turntable Compound Machine
Technical High Lights:
1. Adopting a compact toothed disc divider device, multi-station simultaneous processing, high production efficiency .
2. The electrical system adopts PLC programmable controller touch screen operation screen, which is convenient to adjust and operate.
3. Hydraulic four-jaw chuck is used for clamping, which is convenient for clamping and has high repeated positioning accuracy.
4. Each sliding surface uses an automatic lubrication pump device to ensure the service life of the machine tool.
5. The power head lift adopts nitrogen counterweight, which has high stability and fast response speed.
6. The column slide table adopts hard rail to ensure the rigidity of the power head.
Technical parameters：
| NO. | Item |
Unit
|
Parameter |
Power head | Number of power heads | pc | 2 |
Turntable | Turntable number of stations | unit | 3 |
Spindle servo motor | Power | kw | 3.7kw/5.5kw |
Spindle speed | Rotating speed | r/min | 10-1000 |
Spindle end hole | End hole form | model | NT40/NT50 |
Machine specifications | Machine dimensions (L×W×H) | mm | 2060×2000×2350 |
Machine weight | kg | 2500 | |
Control system | PLC | ||
