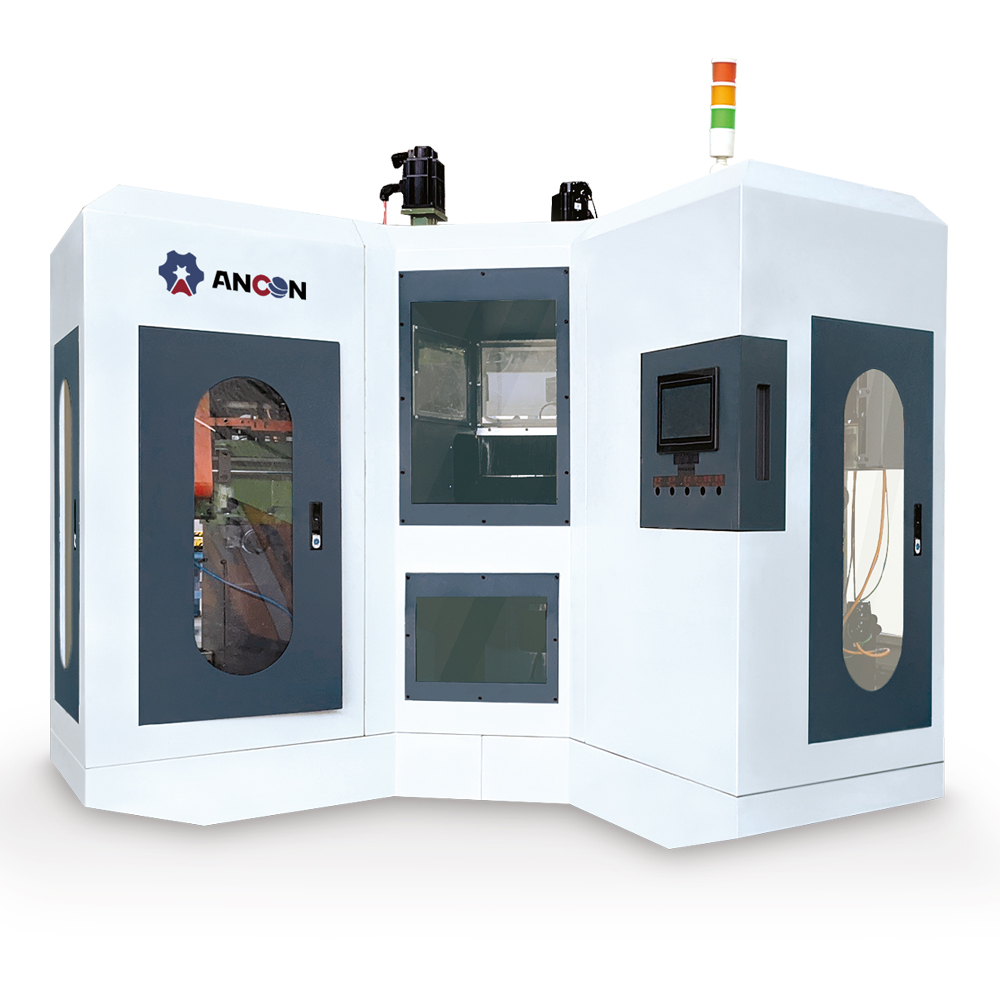

Vertical/Horizontal Eleven-spindle Processing Special Machine
Technical High Lights
1.Adopting a compact toothed disc divider device, multi-station processing at the same time.
2.The whole machine adopts GB-HT300 resin sand castings, which are tempered and naturally aged to eliminate internal stress.
3.The electrical system adopts PLC programmable controller touch screen operation screen, which is convenient to adjust and the operation is easy.
4.Hydraulic double-opening vise is used for clamping, which is convenient for clamping and has high repeated positioning accuracy.
5.One-time clamping, product processing in one step.
| NO. | Item | Unit | Parameter |
Maximum reaming capacity | Drilling diameter | mm | φ80 |
Maximum tapping capacity | Tapping diameter | mm | M75 |
Spindle number | Spindle numbers | unit | 8-18 |
Tool machining length | /Maximum processing length | mm | 120 |
Spindle | Spindle forms | -- | NT40-ER40 |
Rotating speed | r/min | 1500 | |
Spindle motor power | kw | 3/4 | |
Precision | Positioning accuracy | mm | ±0.03 |
Repositioning accuracy | mm | ±0.01 | |
Machine specifications | /Machine dimensions(L×W×H) | mm | 2880×2950×2300 |
Machine weight | kg | 9500 | |
Control system | PLC | ||
