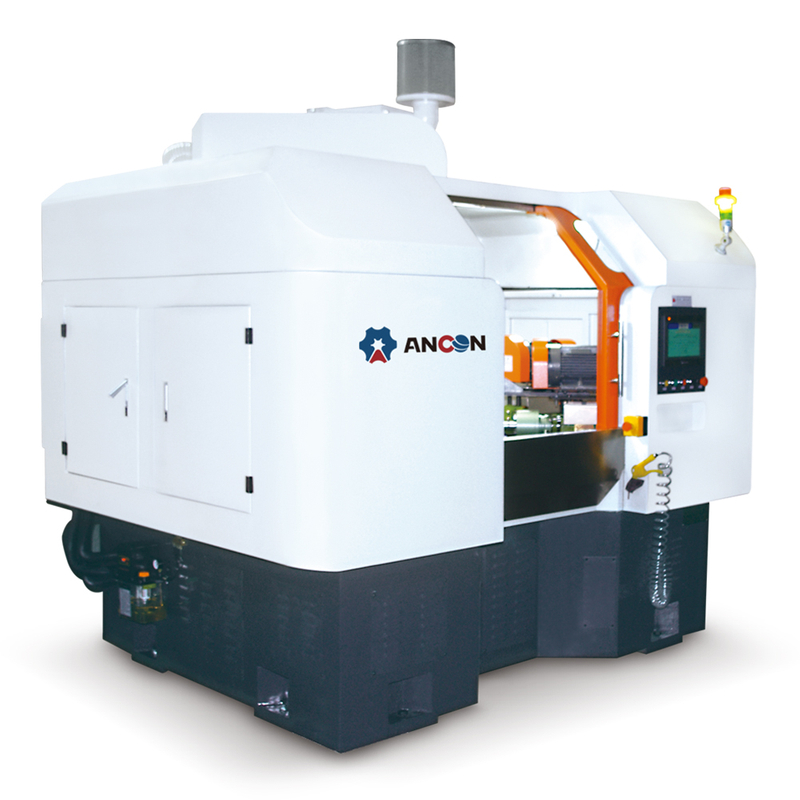

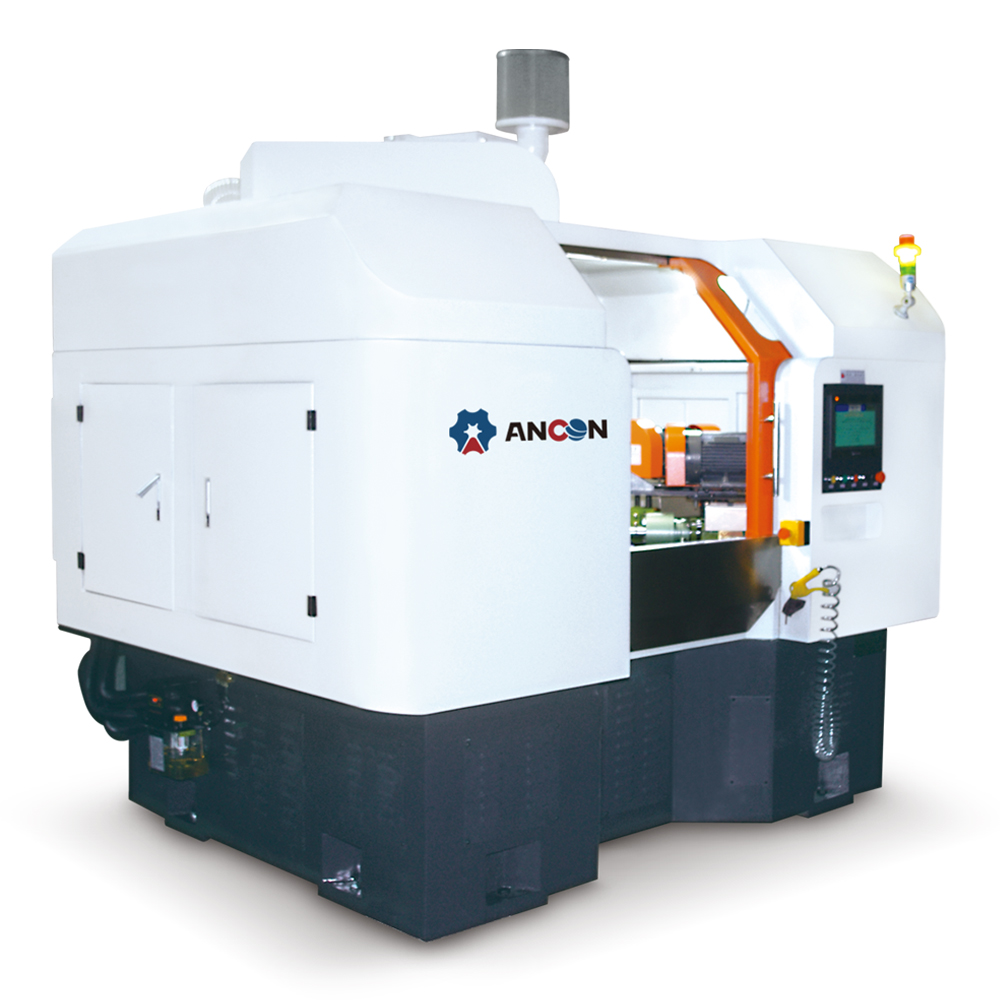

Six-spindle Rotary Plate Compound Machine
Application fields:
It is used in the processing of valves, plumbing and sanitary ware, door control hardware, fire hydrants, auto parts, etc. This processing machine has high efficiency, high precision, beautiful appearance and high cost performance.
Technical High Lights
Using precision gear divider device, multi-station simultaneous processing, drilling, milling and tapping.
The electrical system adopts PLC programmable controller touch screen operation screen, processing parameters can be input according to processing requirements, and the operation is simple.
Technical parameters
| NO. | Item |
Unit
|
Parameter |
Power head | Power head numbers | pc | 6 |
Turntable | Turntable number of stations | unit | 8 |
Spindle | Speed (1, 2, 3, 4, 5, 6) | r/min | 1430、2000、1000、1430、1800、1100 |
Spindle power (1, 2, 3, 4, 5, 6) | kw | 2.2/4P、3/2P、2.2/4P、1.5/4P、2.2/2P、2.2/4P | |
Machine specifications | Machine dimensions (L×W×H) | mm | 2450×2400×2250 |
Control system | PLC | ||
