1. Technical Specifications
It rapidly measures the moisture content of molding sand with digital display of moisture value. 1.1 Test principle: Loss-on-drying method; Temperature range: Ambient ~ 180 ℃ 1.2 Specimen mass range: 0.5–100 g (arbitrary sampling); Division value: 1 mg 1.3 Minimum display resolution: Moisture/solid content 0.01%, mass 0.001 g 1.4 Display units: Moisture (wet basis / dry basis), mass, solid residue 1.5 Testing range: Wet basis & solid residue: 0–100%; Dry basis: 0–500%
2. Main Configuration List
| NO. | NAME | Model | Unit | Qty | Remarks |

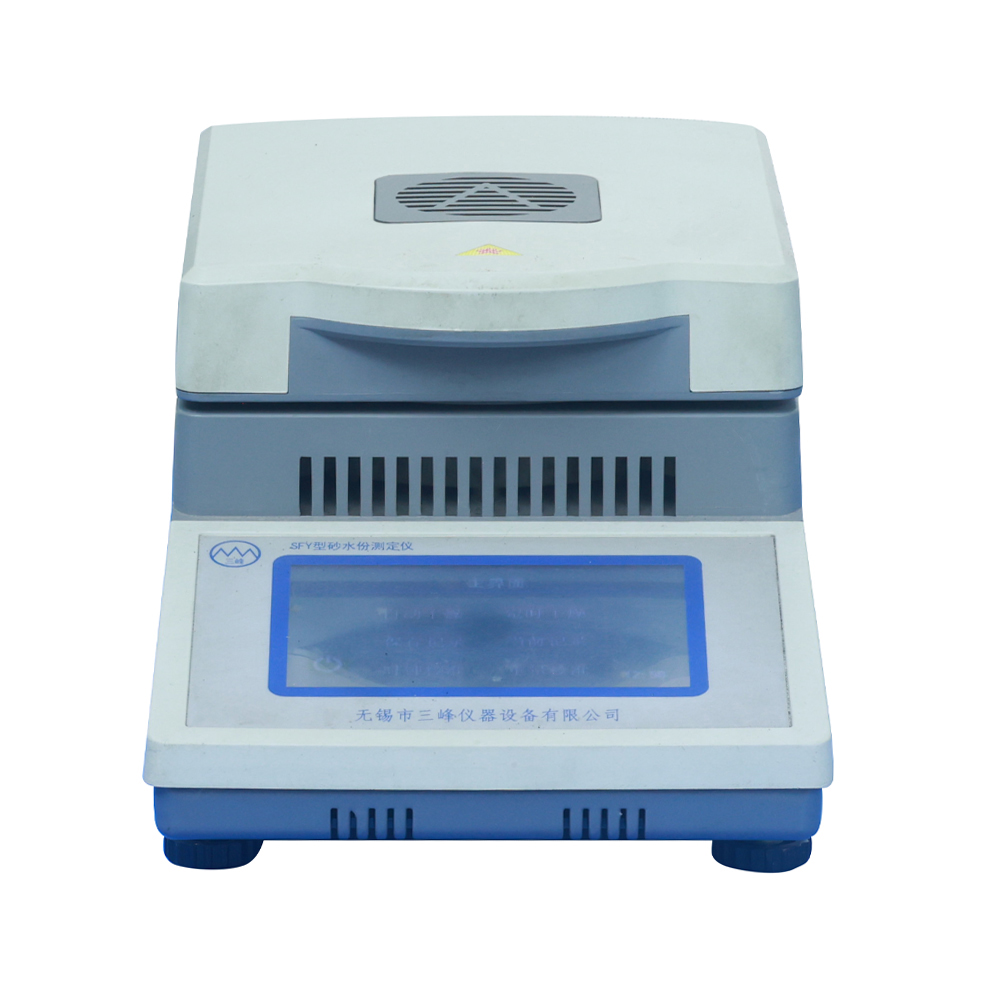

| 1 | Rapid Molding Sand Moisture Tester | SFY | Set | 1 | - |
| 2 | Sample Pan | - | Set | 2 | - |
| 3 | Sample Pan Holder | - | Set | 1
| - |
| 4 | Pan Tongs | - | Set | 1 | - |
| 5 | 100 g Calibration Weight | - | Set | 1 | - |
| 6 | Power Cord | - | Set | 1 | - |
| 7 | Documents including Certificate of Conformity & Operation Manual | - | Set | 1 | - |
| Note: The equipment configuration includes but is not limited to the items listed above to guarantee full functional performance. |
