CBB

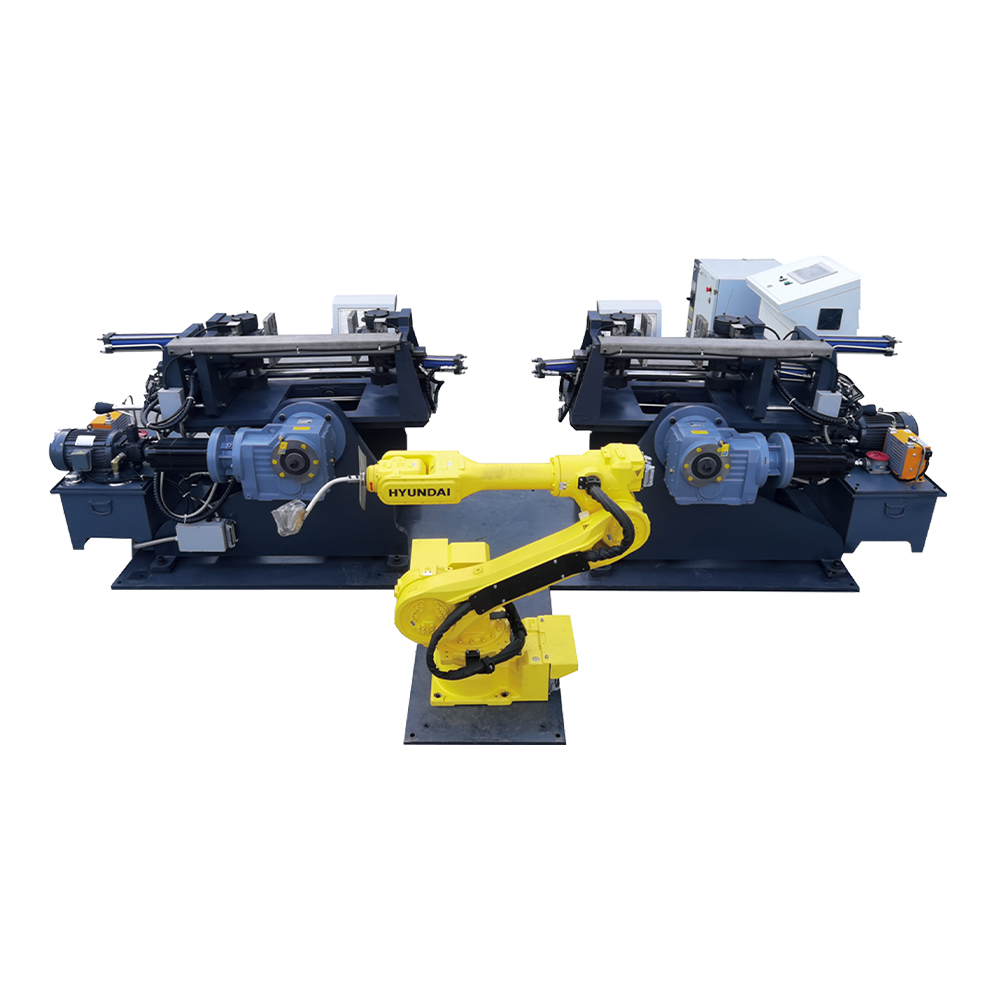

·The circuit is controlled by PLC, and the data setting adopts a touch screen, which can be controlled remotely.
·It is suitable for the casting of gravity model of zinc and aluminum.
·Ability to adjust the cooling time of the model.
·Facilitate the decomposition, assembly and cleaning of the mold.
·It has two functions of manual and automatic circulation, and can preset a counter to record the number of production pieces on duty.
·Equipped with mold adjustment space, it is convenient to dispense different molds and reduce the requirements for mold appearance size.
·The robot can store each set of mold casting operation procedures, suitable for different mold production
Main Specifications and Technical Parameters
No. | Item | Parameters | |
1 | Robot Automatic Casting System | Size of Robot System | 7500×6400mm |
2 | Robot Power | 4.4kw | |
3 | Total Power | 30kw(不含电炉Without Furnace) | |
4 | Weight | 9000kg | |
5 | Zinc Alloy Casting Machine | Max Size of Mold | 360×400mm |
6 | Max Weight of Mold | 130kg | |
7 | Max Merger Distance | ≤300mm | |
8 | Oil Pump Motor | 3Hp、4级 3Hp, level 4 | |
9 | Hydraulic Pressure | 4～6MPa | |
10 | Side Angle | 0°～75° | |
11 | Cleaning Angle | 0°～75° | |
12 | Total Weight | 1480kg | |
13 | Specification (L*W*H) | 2000*1190*1220mm | |
Our Service:
We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.
1.Pre-sale Service System
Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.
2.After-sale Service System
24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.
3.Payment
30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
