CJPZ6-4
Changjiang
Output product analysis:
1. The faucet body and accessories are clear.
2. The locks and door handles are clear.
3. All kinds of hardware and accessories are clear and light.
Process composition:
1. Replace the fixture and the workpiece corresponding to the fixture, and select the program corresponding to the workpiece;
2. Press the start button;
3. The workbench enters, the glass door is closed, and the cleaning process begins;
4. After the clearing is completed, the workbench exits and the glass door opens.
Technical Parameters：
No. | Item | Parameter |
1 | Machine size | 4500*2800*2700 |
2 | Power | 36kw |
3 | Rated voltage | 380V |
4 | Max. size of buffing wheel | 600mm |
5 | Min. size of buffing wheel | 400mm |
6 | X-axis stroke | 900mm |
7 | Y-axis stroke | 825mm |
8 | Z-axis stroke | 700mm |
9 | U-axis stroke | ±90° |
10 | V-axis stroke | ±360°Forward and reverse |
11 | W-axis stroke | ±360°Forward and reverse |
12 | Machine weight | 1t |
Application Direction:
Widely used in sanitary ware, hardware, auto parts and other fields
Product Description:

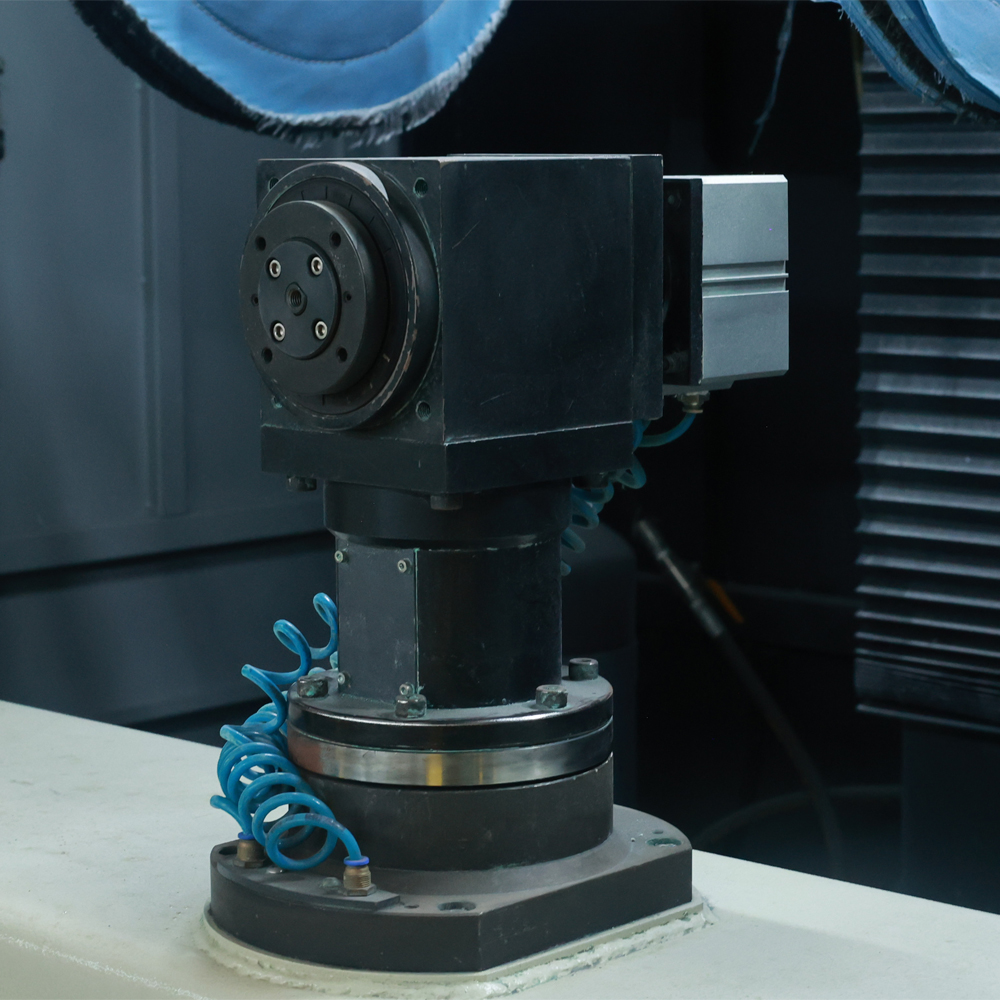

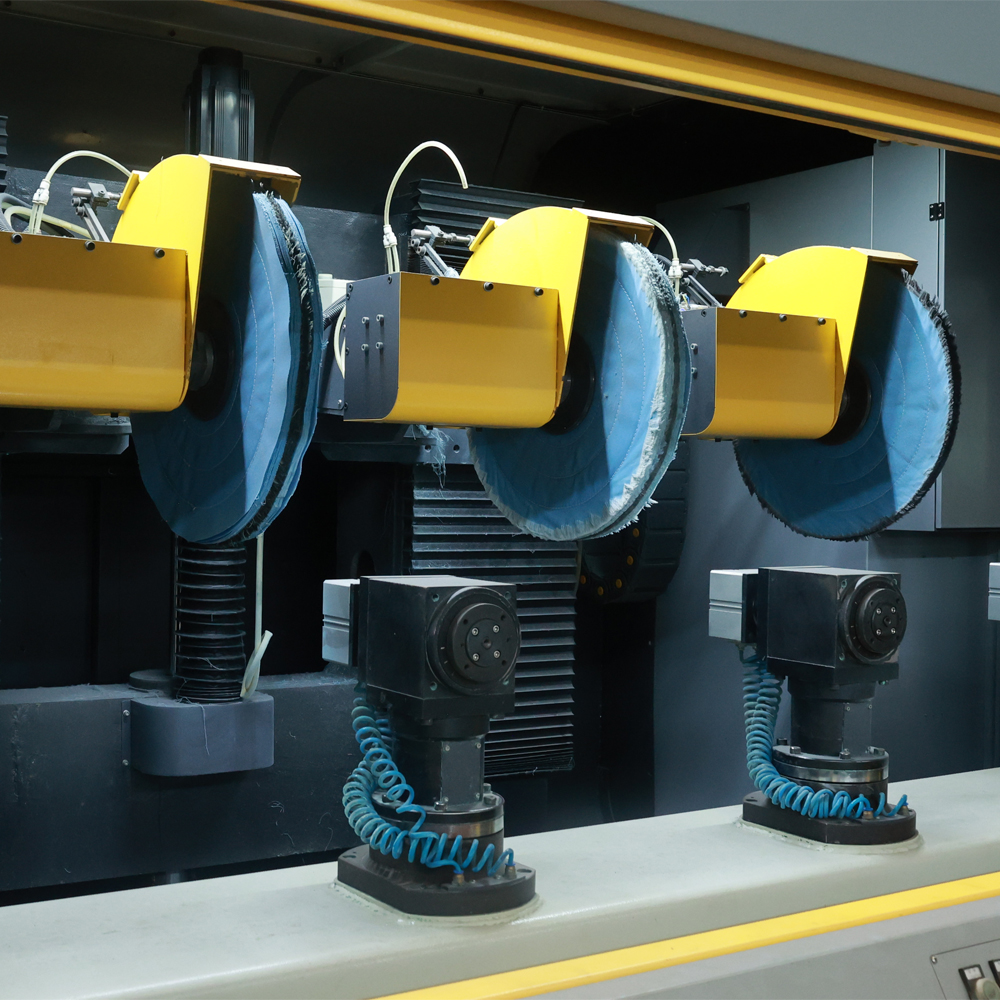

This equipment is a special six-axis four-station buffing robot. It has six degrees of freedom and four stations work simultaneously, which is flexible and efficient; Widely used in product buffing in the fields of sanitary ware, door control and auto parts;
The control system adopts today's advanced motion control technology with stable performance and high control accuracy.
Text Process Mode:
show the text process, use manual mode to simulate manual buffing and record the trajectory, then it can run automatically according to this path.
Buffing Wheel Automatic Compensation Function:

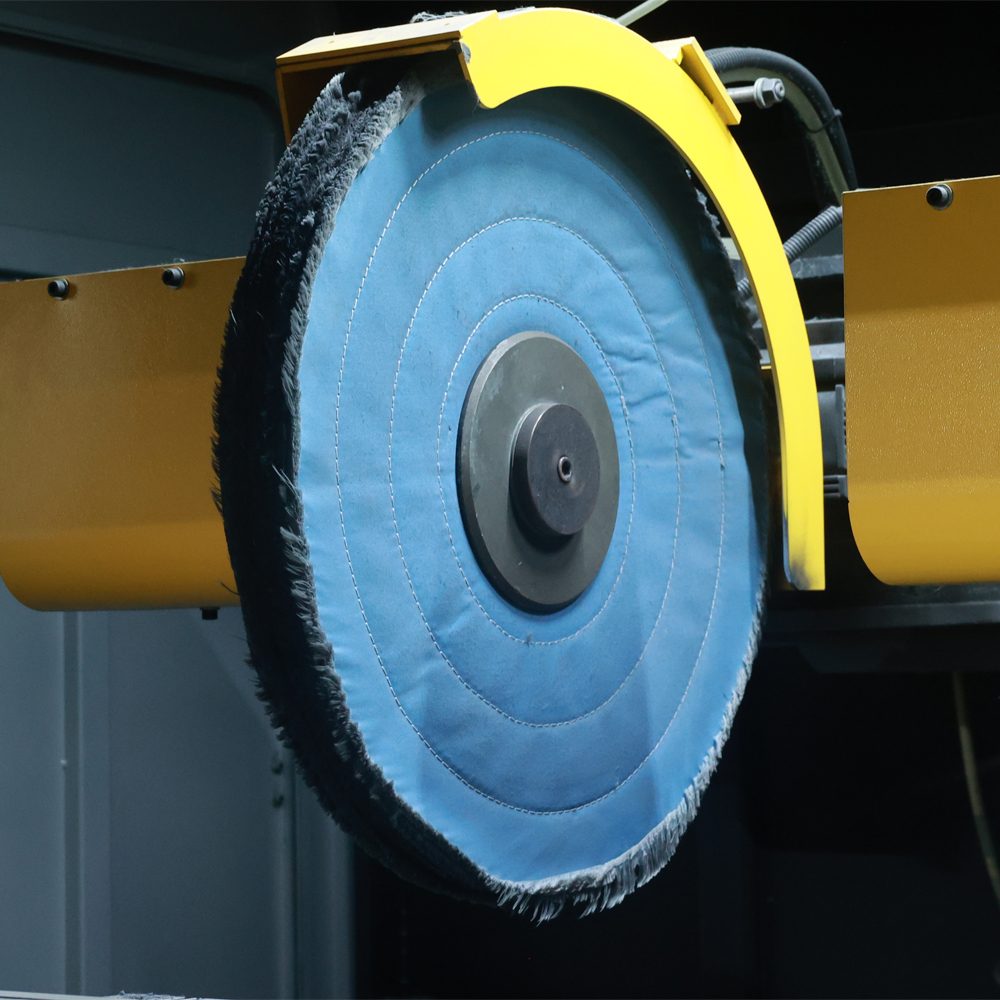

After the buffing cloth wheel is worn out, the system can detect that the torque becomes smaller and realize automatic compensation in all directions.
Linear Speed Compensation:
When the outer diameter of the cloth wheel decreases, the system automatically increases the linear speed of the speed compensation.
Wax Spray Setting:
1.The wax spray time and frequency can be set freely according to the characteristics of the product.
2.Full digital control, the program can be saved and called at any time.
3.The Chinese (English) display touch panel sets various functions and parameters, which is easy to operate and has a fault code display function for easy maintenance.
Features:
1. This equipment is a special six-axis four-station polishing robot. It has six degrees of freedom and four stations work at the same time, which is flexible and efficient;
2. The control system adopts today's advanced motion control technology, with stable performance and high control accuracy.
3. Casting structure for machine base, column and saddle makes the machine stable.
4. Text process method: show the calibration text process, use manual mode to simulate manual polishing and record the trajectory, then it can run automatically according to this path.
5. Automatic compensation function of polishing wheel: After the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and realize automatic compensation in all directions.
6. Linear speed compensation: When the outer diameter of the cloth wheel decreases, the system automatically increases the linear speed of the speed compensation.
7. Wax spray setting: The wax spray time and frequency can be set freely according to the characteristics of the product.
8. Full digital control, the program can be saved and recalled at any time.
9. Various functions and parameters are set by the Chinese (English) display touch panel, which is easy to operate and has a fault code display function for easy maintenance.
Fujian Changjiang Industrial Co., Ltd. was established in February 2007 and is a subsidiary of Delin Intelligent Technology Co., Ltd. It is a high-tech enterprise specializing in R&D and manufacturing of high-end technical equipment such as robots and numerical control intelligent automation equipment in the production field.
Our Service:
We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.
1.Pre-sale Service System
Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.
2.After-sale Service System
24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.
3.Payment
30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
