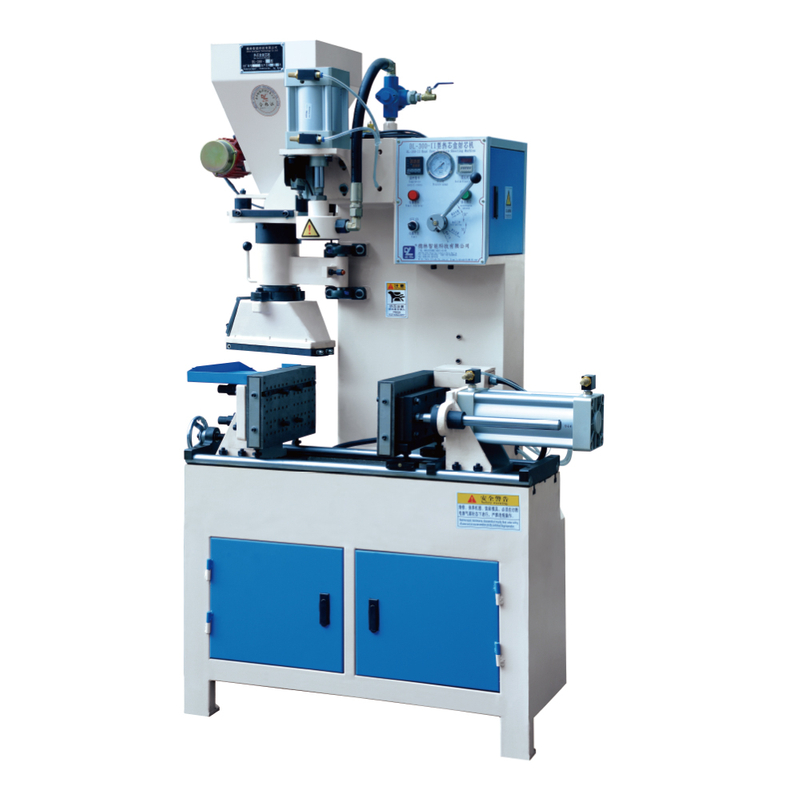

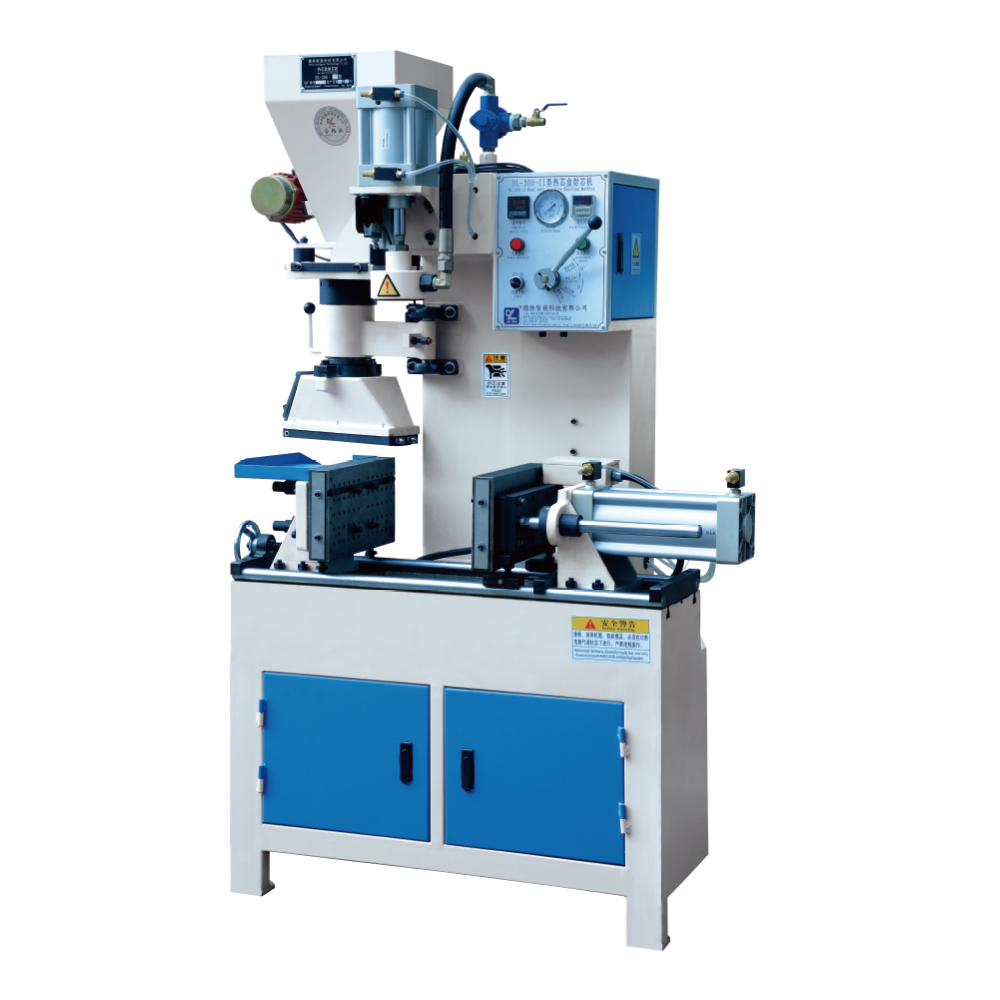

Hot Box Core Shooting Machine

Availability:
Quantity:
  • DLZS4026B

  • Delin


热芯盒射芯机



DL-300-II/DL-300-Z Heat Core Box Shooting Machine Features:

The heat box core shooting machine is a kind of core shooting machine. It is a semi-automatic, vertical parting machine.
Simple, low cost, suitable for small quantity production.
The core shooting machine consists of three parts, such as mechanical part, pneumatic part and electrical part.
One needs to put the molds and take out sand cores by hand.
It is especially commonly used in copper and aluminum casting for producing sand cores of different shape and low structure strength.


Technical Parameter:

No.

DLZS4026B

Parameters

1

Max. Weight of Sand Core

3.2kg

2

Max. size of core box (L*W*H)

350*260*160mm

3

Ejector vertical stroke

≤30mm

4

Size of heating plate (L*W*H)

350*200*50mm

5

Core-pulling stroke

150mm

6

Heating power

6.5kw

7

Net weight

430kg

8

External Dimensions (L*W*H)

1250*730*1900mm


Our Service:

We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.

1.Pre-sale Service System

Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.

2.After-sale Service System

24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.

3.Payment

30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
